D1
D2
D3
L1
L2
L3
10mm
24,6
22,95
43,65
25,4
8,74
12mm
27,79
23,9
43,65
25,4
8,74
13mm
27,79
23,9
43,65
25,4
8,74
14mm
30,95
26,7
43,65
25,4
10,32
15mm
30,95
26,7
43,65
25,4
10,32
16mm
30,95
26,7
43,65
25,4
10,32
18mm
34,15
31,1
43,65
25,4
10,32
19mm
34,15
31,1
43,65
25,4
10,32
20mm
35,7
33,4
43,65
25,4
10,32
22mm
37,3
33,4
43,65
25,4
10,32
24mm
40,5
39,0
43,65
25,4
10,32
25mm
40,5
39,0
43,65
25,4
10,32
28mm
47,63
46,3
60,33
33,34
11,99
30mm
50,8
49,4
60,33
33,34
11,99
32mm
50,8
49,4
60,33
33,34
11,99
33mm
53,98
52,6
60,33
33,34
11,99
34mm
53,98
52,6
60,33
33,34
11,99
35mm
53,98
52,6
60,33
33,34
11,99
38mm
57,15
55,8
60,33
33,34
11,99
40mm
60,35
59,0
60,33
33,34
11,99
42mm
63,5
64,0
70,64
40,48
11,99
43mm
63,5
64,0
70,64
40,48
11,99
44mm
63,5
64,0
70,64
40,48
11,99
45mm
63,5
64,0
70,64
40,48
11,99
48mm
66,7
66,6
70,64
40,48
11,99
50mm
68,95
69,5
70,64
40,48
11,99
53mm
73,05
73,3
71,0
41,0
13,5
55mm
76,2
78,0
71,0
41,0
13,5
58mm
79,4
80,0
71,0
41,0
13,5
60mm
79,4
80,0
71,0
41,0
13,5
63mm
82,55
84,9
71,0
41,0
13,5
65mm
92,1
88,4
70,0
49,0
15,9
70mm
95,25
90,0
70,0
49,0
15,9
73mm
98,45
94,85
73,0
49,0
15,9
75mm
101,65
101,9
73,0
49,0
15,9
OPERATING LIMITS
PRESSURE
SPEED
TEMPERATURE
VALUE
14bar
15m/sec
-40°C ~ 200°C

Rotary Ring Carbon/SIC/TC)

Secondary Ring (NBR/EPDM/VITON)

Spring and Other Parts (SUS304/SUS316)

Stationary Ring (Ceramic/SIC/TC)

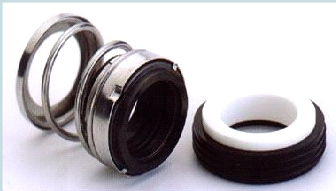

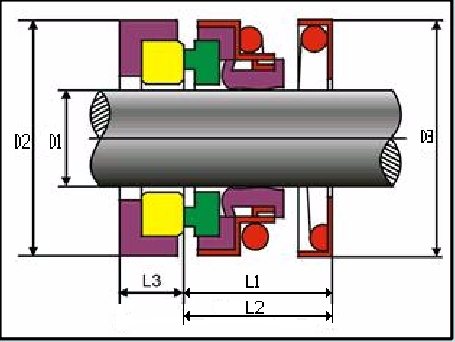

Type21 Metric seal Type21 Metric drawing

L2 = T21 MET

L1 = T21 MET LONG


SHAFT DIAMETER (mm)

60
40
20
0
80
100

BELLOWS SEAL TYPE 21

MAXIMUM PRESSURE (BAR AT 1450 RPM)
16

 14

 12

 10

 8

 6

 4

 2

 0

Car/Sil


Car/Tc


Tc/Sil


Car/Cer


Sil/Sil


Tc/Tc


Car/S-steel


Materials

Rotary Face  Car, Sil, Tc

Stationary Face  Cer, Sil, Tc

Spring  304 Stainless Steel

Elastomers  Nitrile / Viton / EPDM

Metal parts  316 Stailess Steel

Type T21 MET Seals are part of a family of Diaphragm Rubber bellow Seals and are interchangeable with many other makes including John Crane Types 1A & 2 as well as Sealol 043 CE Long and Short.     The Bellow rotates with the shaft and can accommodate some end float, eccentricity and missalignment.

Benefits

Positive drive      Reduces Bellow Stress

Self adjusting      Bellow takes care of wear and                                  shaft float

Long life              Due to minimum face loading       Non clogging     Due to open single spring design Non fretting        No moving O-rings

Bi-directional      Due to positive drive



All metal parts in Stainless Steel as standard


Media - Dependant on materials


* See P.V. Curves for maximum  speed/pressure combination



Note

P.V. Curves for water at 20'C
