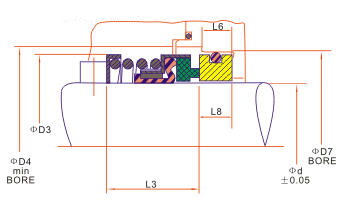

D200
Seal
d
D3
D4
L3
D7
L6
L8
Inch
0.500
12.70
23.81
26.99
20.64
27.80
7.1
8.7
0.625
15.88
26.99
33.34
22.23
30.95
8.7
10.3
0.750
19.05
30.16
36.51
22.23
34.15
8.7
10.3
0.875
22.23
33.34
39.69
23.81
37.30
8.7
10.3
1.000
25.40
42.85
49.20
25.40
40.50
8.7
10.3
1.125
28.58
46.02
52.37
26.97
47.65
10.3
11.9
1.250
31.75
49.20
55.55
26.97
50.80
10.3
11.9
1.375
34.93
52.37
58.72
28.58
54.00
10.3
11.9
1.500
38.10
55.55
61.90
28.58
57.15
10.3
11.9
1.625
41.28
63.50
69.85
34.93
60.35
10.3
11.9
1.750
44.45
66.68
73.03
34.93
63.50
10.3
11.9
1.875
47.63
69.85
76.20
38.10
66.70
10.3
11.9
2.000
50.80
73.03
80.95
38.10
69.85
11.9
13.5
2.125
53.98
76.20
84.12
42.85
73.05
11.9
13.5
2.250
57.15
79.38
87.30
42.85
76.20
11.9
13.5
2.375
60.33
82.55
90.47
46.02
79.40
11.9
13.5
2.500
63.50
84.91
93.65
46.02
82.55
11.9
13.5
2.625
66.68
88.90
101.60
49.20
92.10
14.3
15.9
2.750
69.85
95.25
104.78
49.20
95.25
14.3
15.9
2.875
73.03
98.43
111.13
52.37
98.45
14.3
15.9
3.000
76.20
101.60
114.30
52.37
101.60
14.3
15.9
3.125
79.38
104.78
120.65
55.55
111.15
18.3
19.9
3.250
82.55
107.95
123.83
55.55
114.30
18.3
19.9
3.375
85.73
114.30
133.35
55.55
117.50
18.3
19.9
3.500
88.90
117.48
136.53
55.55
120.65
18.3
19.9
3.625
92.08
120.65
139.70
58.72
123.85
18.3
19.9
3.750
95.25
123.83
142.88
58.72
127.00
18.3
19.9
3.875
98.43
127.00
146.05
61.90
130.20
18.3
19.9
4.000
101.60
130.18
149.23
61.90
133.35
18.3
19.9
OPERATING LIMITS:
TEMPERATURE: -40°C ~ 200°C
PRESSURE: 0 ~ 1Mpa
SPEED: <13 m/s
Design Feature:
A. Single Spring, rubber bellow seal
B. Used in the inch shaft can change with type Crane 21 seal

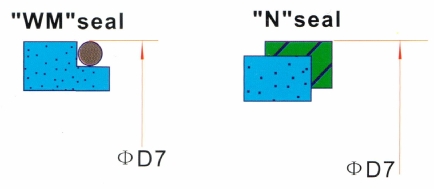

C. Beside the stationary ring of type “W”, other Stationary rings such as crane types “N”, “WM” can also be used.
