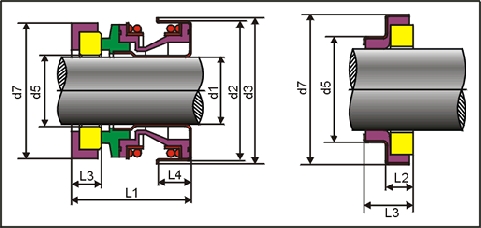

D3
d
d1
d2
d3
d5
d7
L1
L3
L4
1/2”
14.2
30
35
13.5
19.2
19.2
6.2
8
5/8”
18.2
36.45
41.5
17.5
25
25
10.3
8
3/4”
21.2
40
43.5
20
25.8
25.8
10.3
9.5
1”
26.4
47
51
27
29
29
11.1
10
OPERATING LIMITS
SPEED: 15 m/s
Pressure: 0.6Mpa
Temperature: -30°C ~ 200°C
Stationary Ring Ceramic/SIC/TC)
Spring and Other Parts(S.S/SUS304/SUS316)
Secondary Seal (NBR/EPDM/VITON)
Rotary Ring (Carbon/SIC/TC)
