D502
d

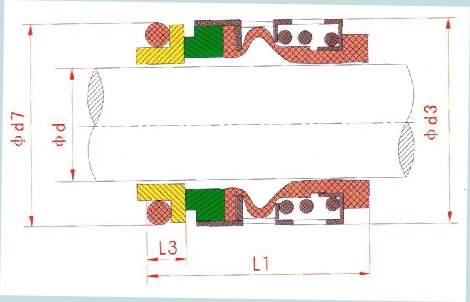

d3
d7
L1
L2
14mm
24
25
35
12
16mm
26
27
35
12
18mm
32
33
37.5
13.5
20mm
34
35
37.5
13.5
22mm
36
37
37.5
13.5
24mm
38
39
40
13.5
25mm
39
40
40
13
28mm
42
43
42.5
12.5
30mm
44
45
42.5
12
32mm
46
48
42.5
12
35mm
49
50
42.5
12
38mm
54
56
45
13
40mm
56
58
45
13
45mm
61
63
45
13
50mm
66
70
47.5
13.5
55mm
71
75
47.5
13.5
60mm
80
80
52.5
13.5
OPERATING LIMITS
PRESSURE
SPEED
TEMPERATURE
VALUE
2.8
13
-30°C ~ 200°C
Stationary Ring (Ceramic/SIC/TC)
Spring and Other Parts(SUS304/SUS316)
Secondary Seal (NBR/EPDM/VITON)
Rotary Ring (Carbon/SIC/TC)
