OPERATING LIMITS
PRESSURE
SPEED
TEMPERATURE
VALUE
0.6
15
-30°C ~ 200°C
|
Model |
d1 |
d2 |
d3 |
d5 |
d7 |
L1 |
L4 |
|
1/2" S |
12,0 |
28,55 |
32,0 |
18,5 |
25/26 |
17,5 |
8,0 |
|
1/2" M |
12,0 |
30,0 |
35,0 |
18,5 |
25/26 |
17,5 |
8,0 |
|
1/2" L |
12,0 |
33,4 |
38,0 |
18,5 |
25/26 |
17,5 |
6,7 |
|
1/2" T |
13,0 |
30,0 |
35,0 |
18,5 |
25/26 |
18,0 |
8,0 |
|
5/8" |
16,0 |
36,45 |
41,5 |
22,5 |
30,5 |
20,5 |
8,0 |
|
5/8" T |
16,0 |
36,45 |
41,5 |
19,3 |
31,5 |
20,5 |
8,0 |
|
5/8" L |
16,0 |
38,1 |
41,5 |
22,5 |
30,5 |
20,5 |
8,0 |
|
3/4" |
20,0 |
38/40 |
43,8 |
26,5 |
37,0 |
22,0 |
9,5 |
|
3/4" T |
20,0 |
40,0 |
43,8 |
28,0 |
37,0 |
22,0 |
9,5 |

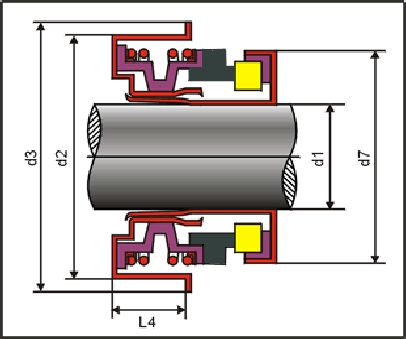

D68S
Stationary Ring
Spring and Other Parts
Secondary Seal
Rotary Ring
