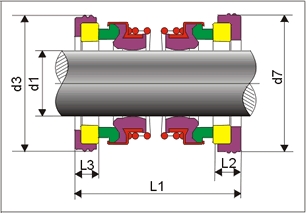

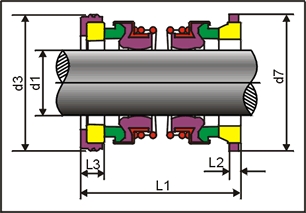

H-TYPE
d
d3
d7
L1
L2
L3
13
25
25
36
5
5
14
30
30
36
5
5
15
30
30
36
5
5
16
30
30
36
5
5
18
35
38
49
7
10
19
35
38
49
7
10
20
38
44
49
7
7
25
44
50
51
7
7
30
50
57
59
9
8
35
58
64
61
9
9
40
64
70
64
11
9
45
66
70
65
10
9
50
72
80
69
10
9
OPERATING LIMITS
PRESSURE
SPEED
TEMPERATURE
VALUE
0.3
10
-30°C ~ 200°C
Stationary Ring (Ceramic/SIC/TC)
Spring and Other Parts(SUS304/SUS316)
Secondary Seal (NBR/EPDM/VITON)
Rotary Ring (Carbon/SIC/TC)
