HB
d
dl
d7
L1
L3
1 1/8"
28
50
30
10
1 1/2"
35
64
35
10.5
2"
50
74.5
50
12.2
OPERATING LIMITS
PRESSURE
SPEED
TEMPERATURE
VALUE
2.8
13
-30°C ~ 200°C

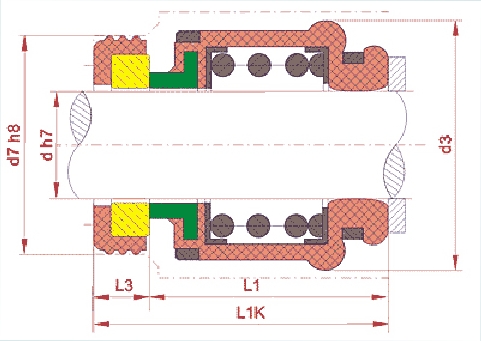

Spring
Retainer
Bellows
Stationary Ring
Cup gasket
Rotary Ring
